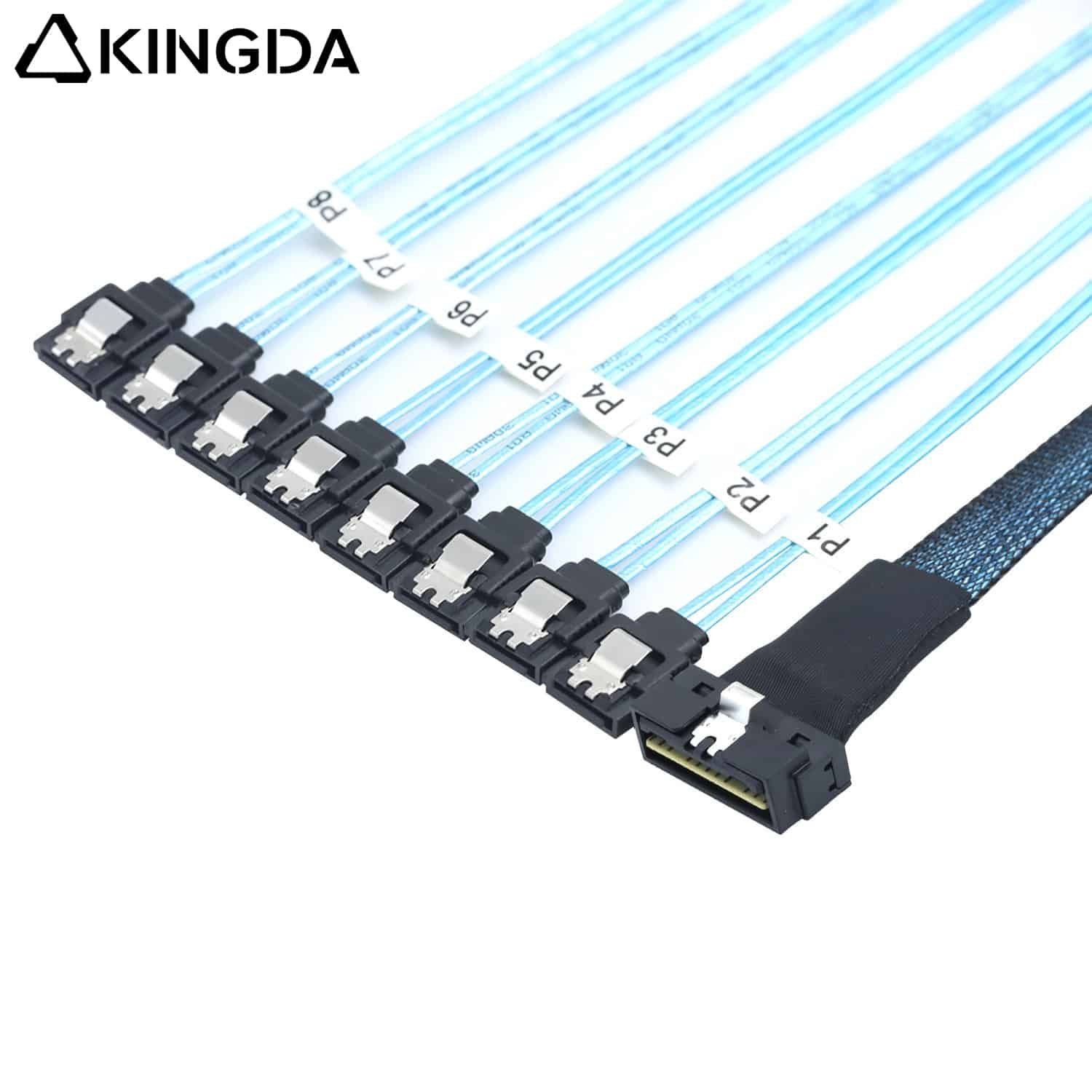

Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 1

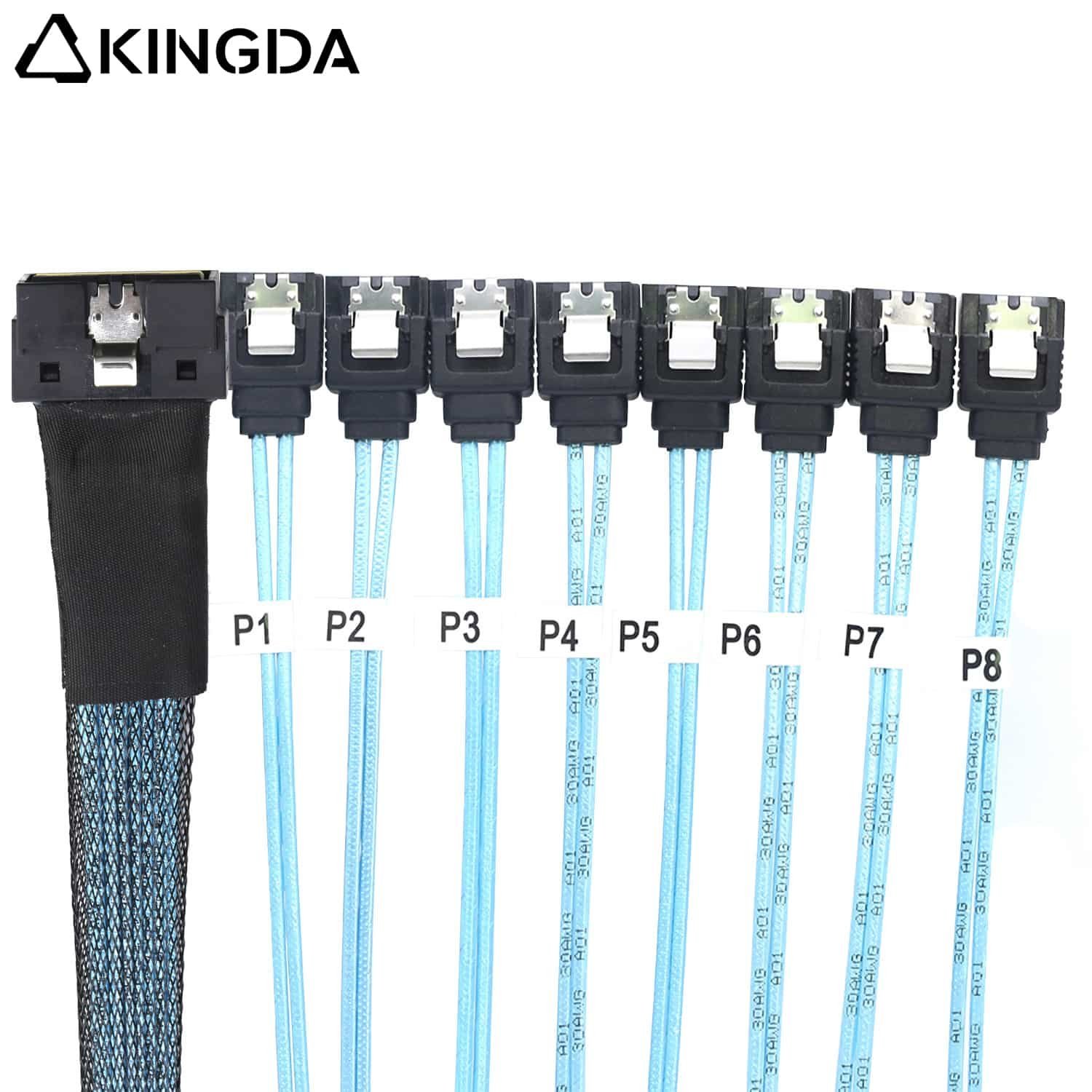

Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 2

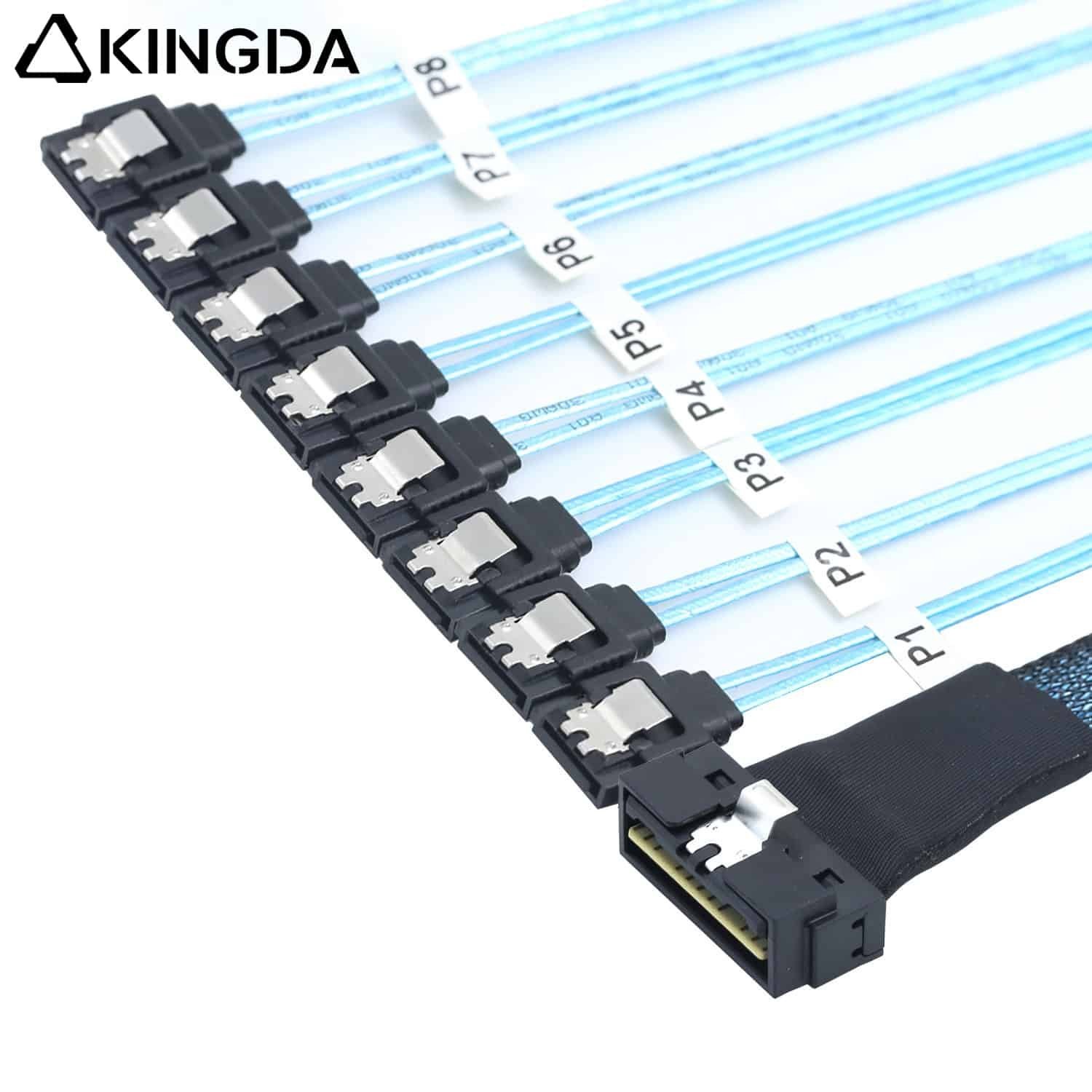

Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 3

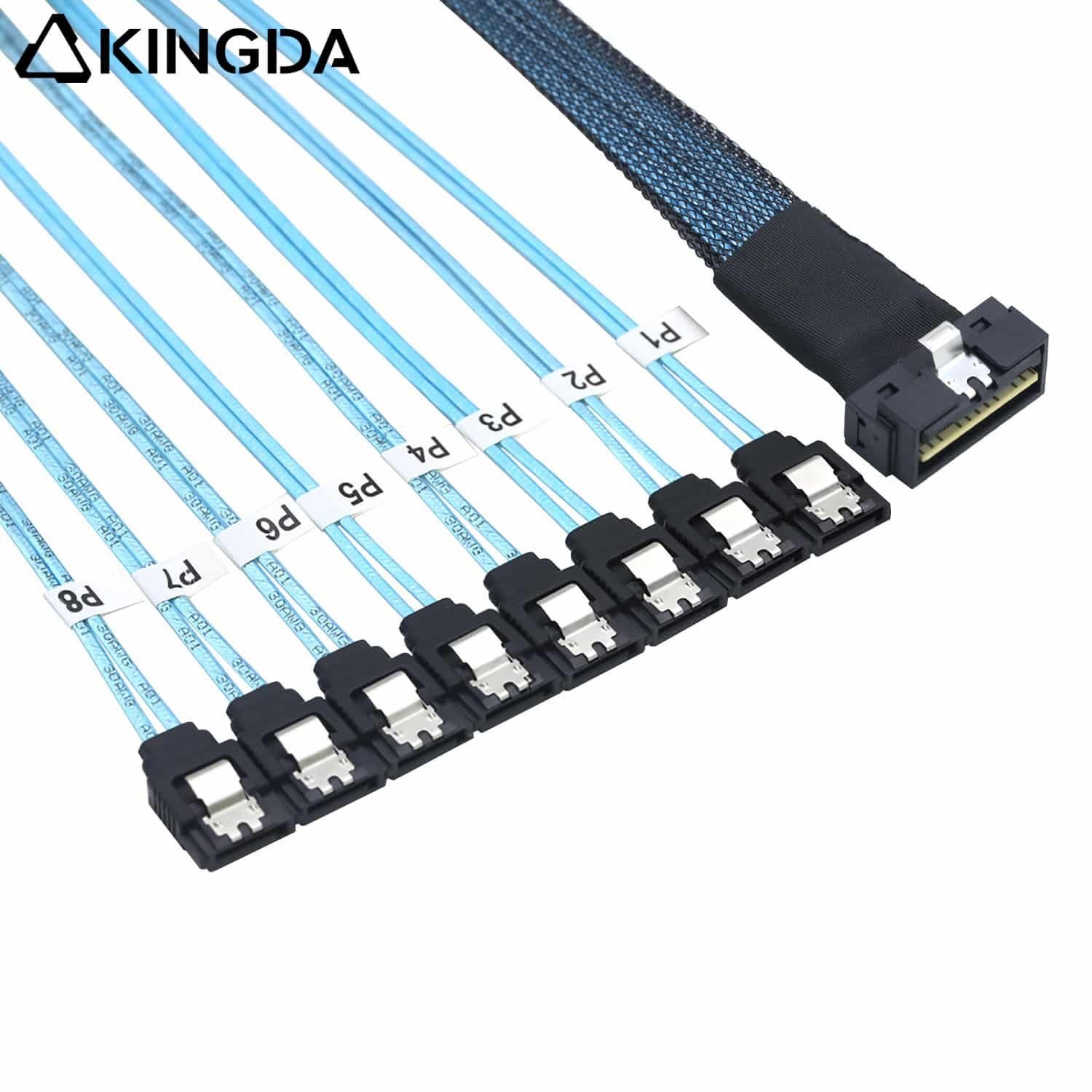

Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 4

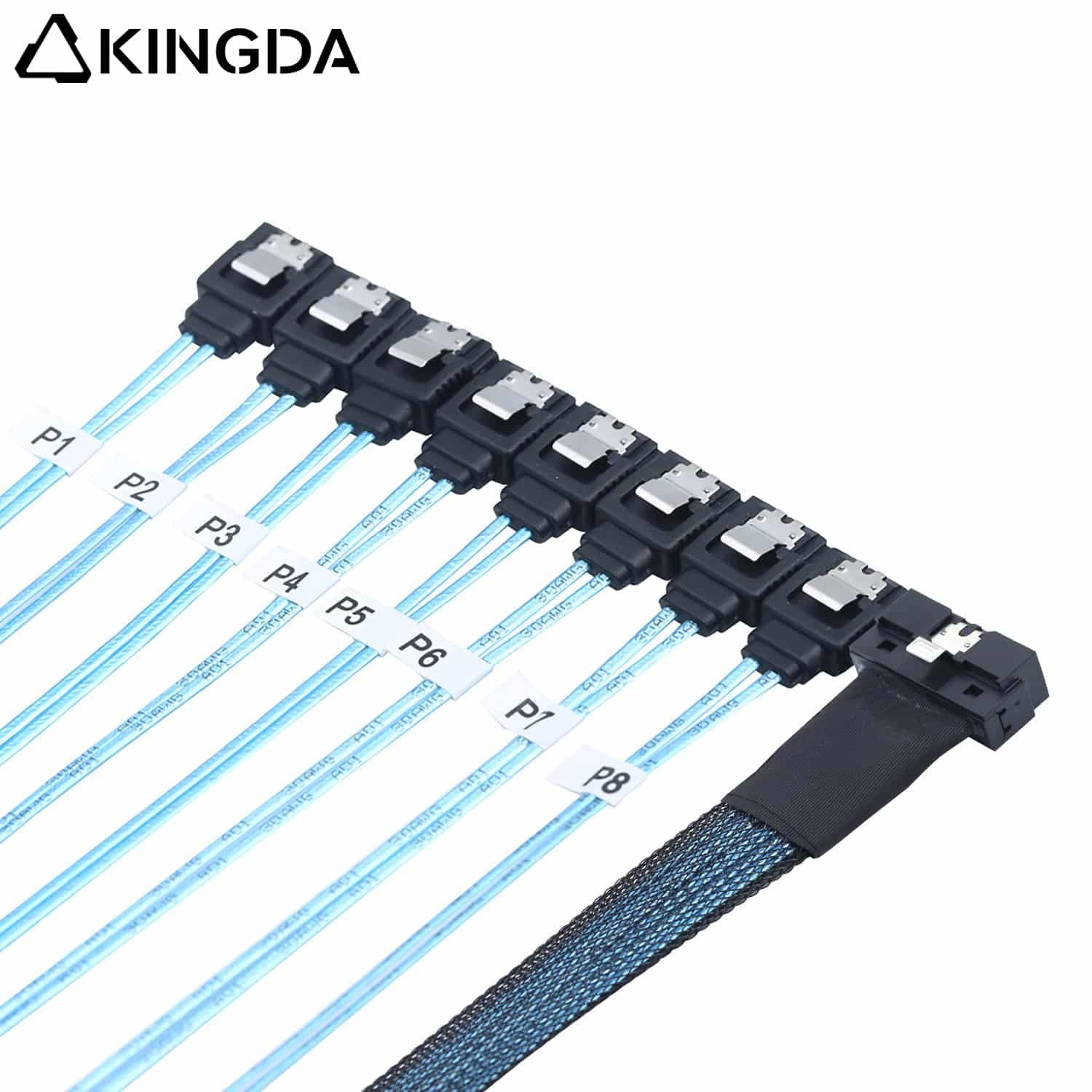

Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 5

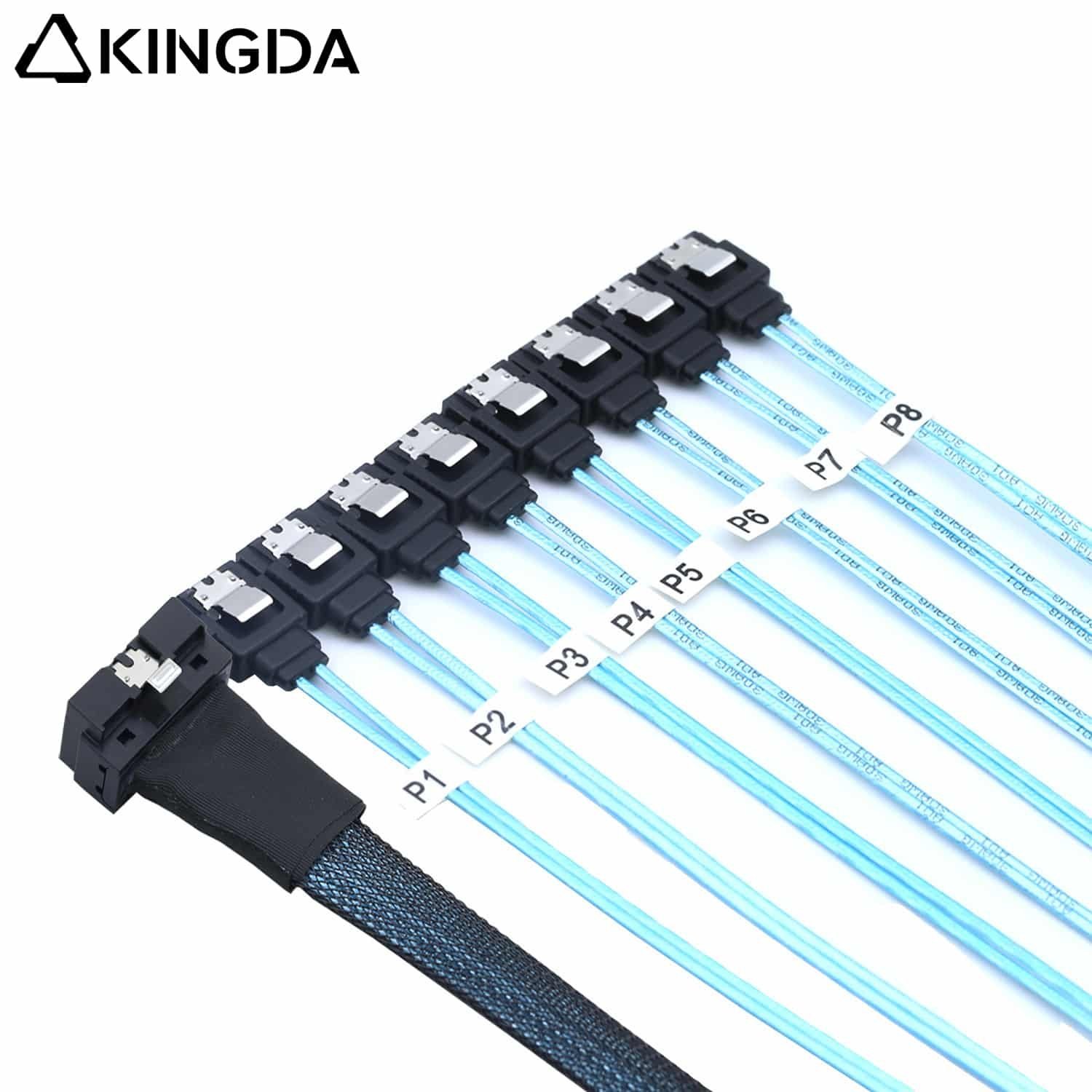

Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 6
Click to enlarge
Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable
Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 2
Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 3
Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 4
Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 5
Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable - Image 6

Low profile Slim SAS SFF 8654 8I (74P) to 8 SATA 7P female High speed data Connection Cable

  • Low profile Slim SAS SFF 8654 8I (74P) To 8 SATA 7p
  • Gold plated connectors
  • Conductor: TC/BC (bare copper),
  • Gauge: 30AWG
  • Jacket: Nylon or Tube
  • Length: 0.5m/ 1m or others. (optional)
  • All materials with Roshcomplaint

Compare
Add to wishlist

Free delivery for orders over $100

Low profile Slim SAS SFF 8654 8I (74P) To 8 SATA 7p

Gold Plated

Color Black

Electrical
Quality Control systemOperation according to regulation & rules in ISO9001
VoltageDC300V
Insulation Resistance10M min
Contact Resistance3 ohm max
Working Temperature-25C—80C
Data transfer rate12G



Applications:

Low profile SFF 8654 8i cables are widely used in High-performance computing equipment，such as Computer, Server…etc



Interface

The Low Profile SFF-8654 interface is a high-density storage connector. Its core features are consistent with the standard SFF-8654 interface, but it adopts a low-profile design to fit space-constrained application scenarios. The following are key definitions and technical points:

In practical applications, the functionality of the SFF-8654 interface depends on the protocol support of the motherboard or array card. For instance, if the motherboard is directly connected to the CPU via a PCIe channel, this interface is typically used to connect NVMe protocol hard drives; if the motherboard supports a SAS controller, it can be used to connect multiple SAS or SATA hard drives.

Detail

The internal wires are usually made of high-quality copper, which has good electrical and thermal conductivity to ensure stable and efficient data transmission. The exterior is wrapped with an insulating material, usually HDPE or other materials with good insulating properties, which protects the internal wires from the external environment and also prevents short circuits and other problems between the cables.



Utral durability and shielding performance

The connector Lock and contact part will usually use metal materials, such as brass, phosphor bronze and so on. These contact have good electrical conductivity and mechanical strength, to ensure a stable connection between the connector and the equipment, and can withstand multiple insertion and extraction and not easy to damage. The Lock can fit tightly with the device. improve the stability of signal transmission.
