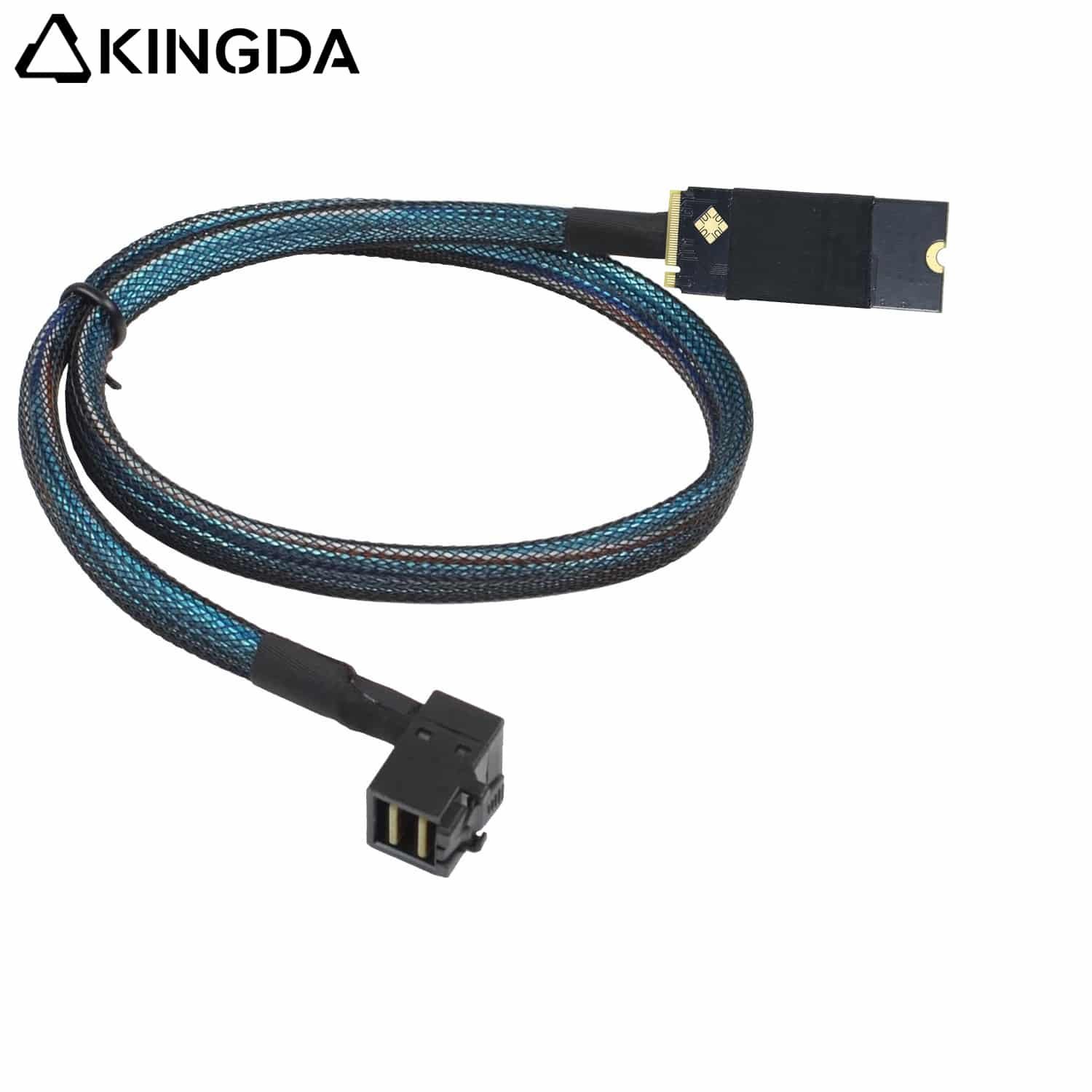

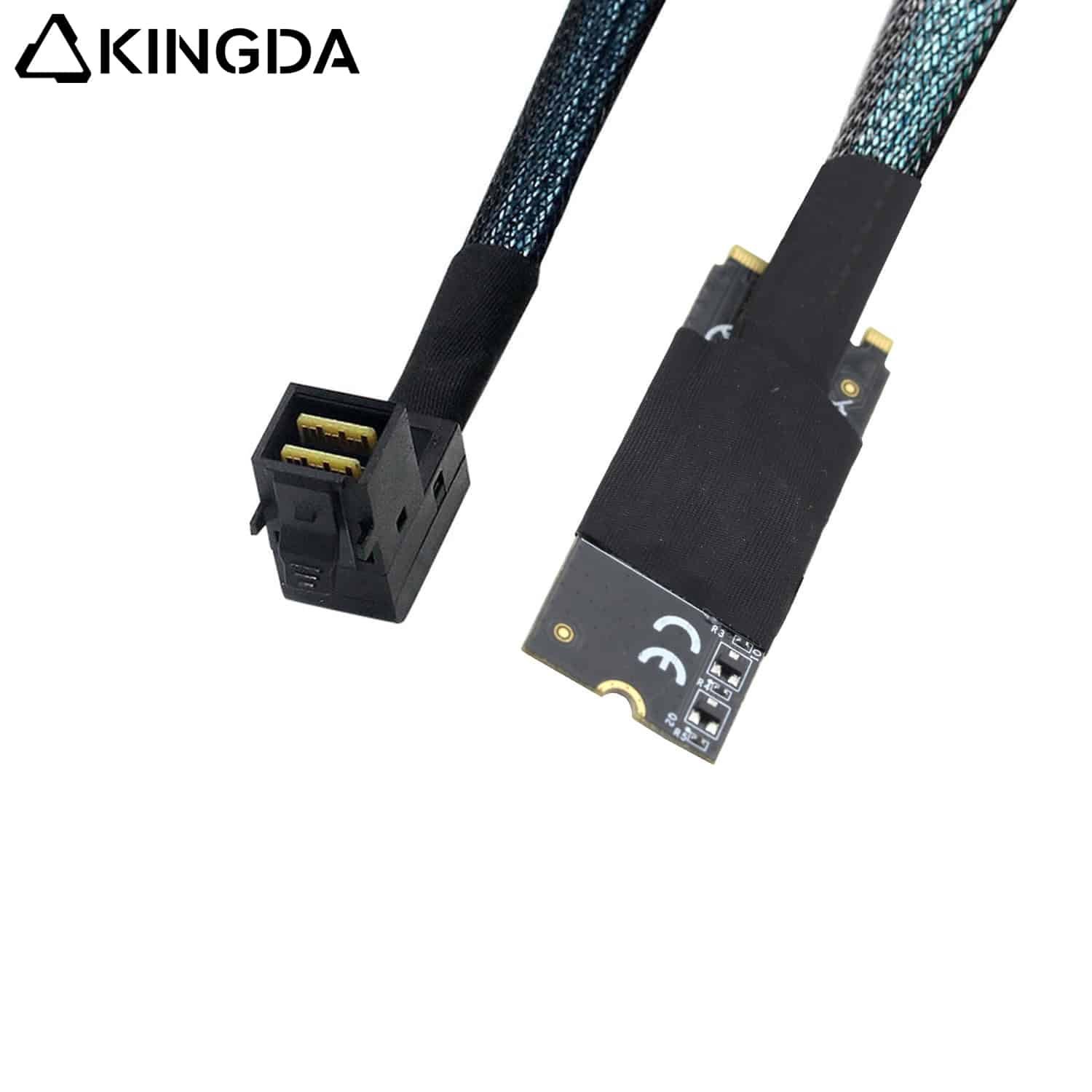

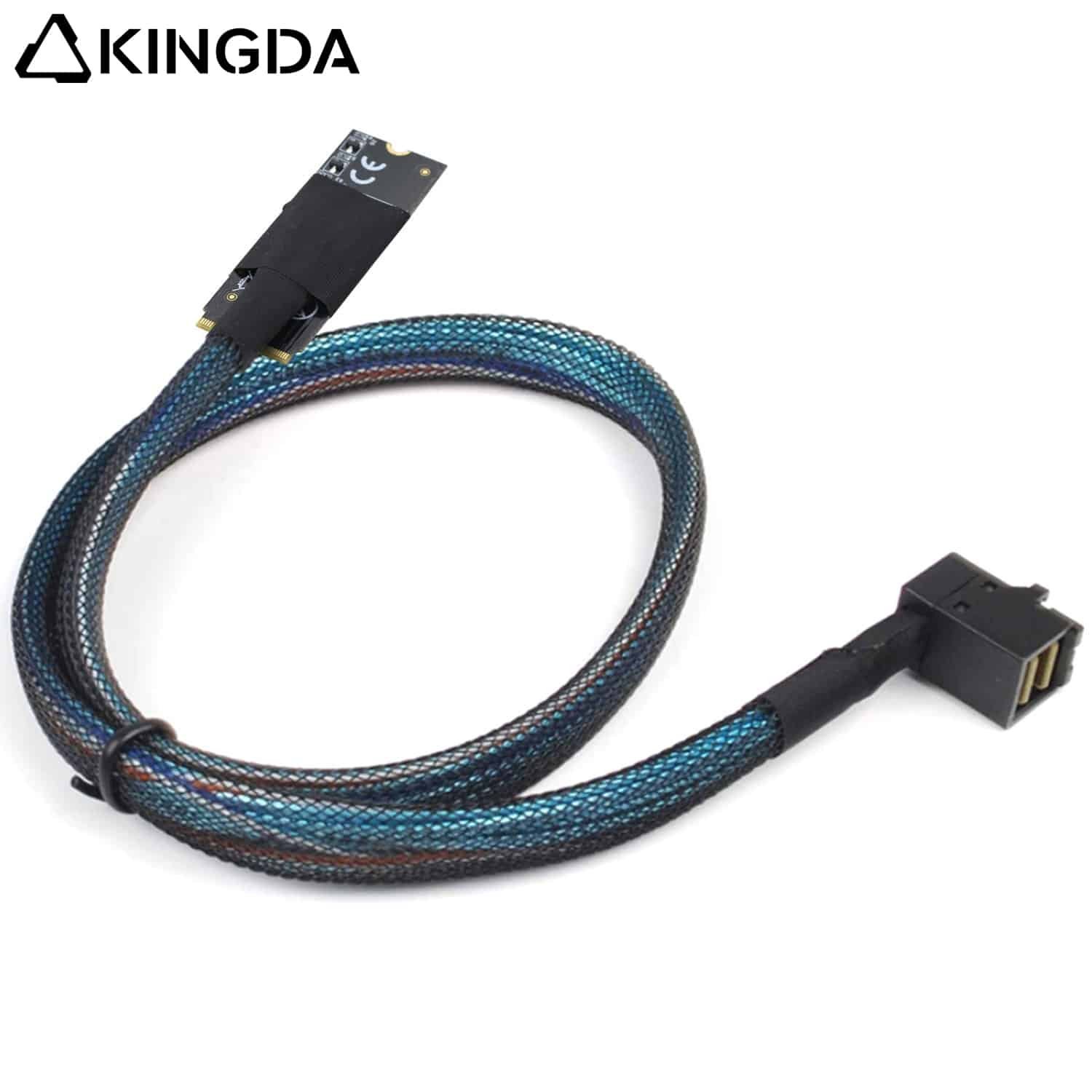

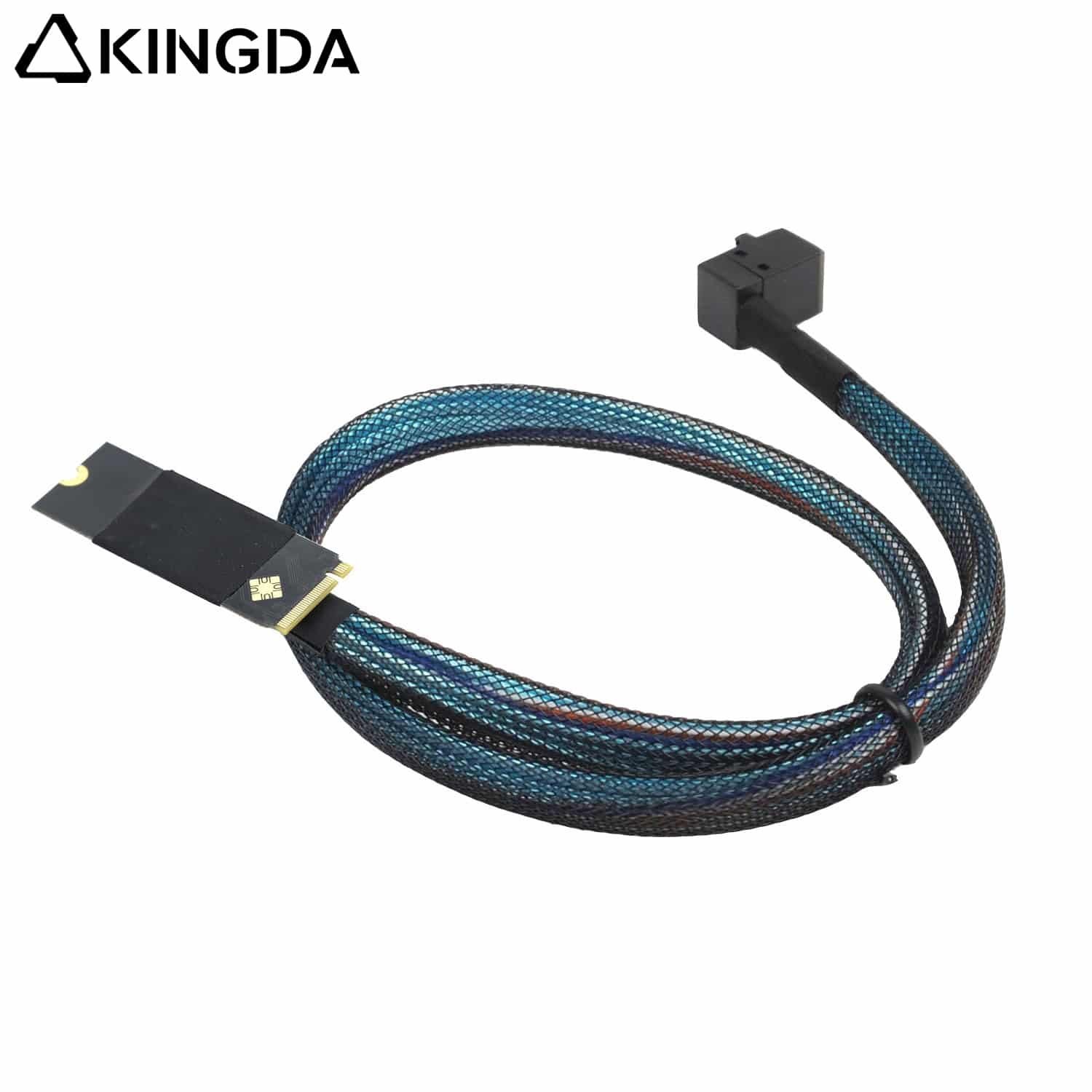

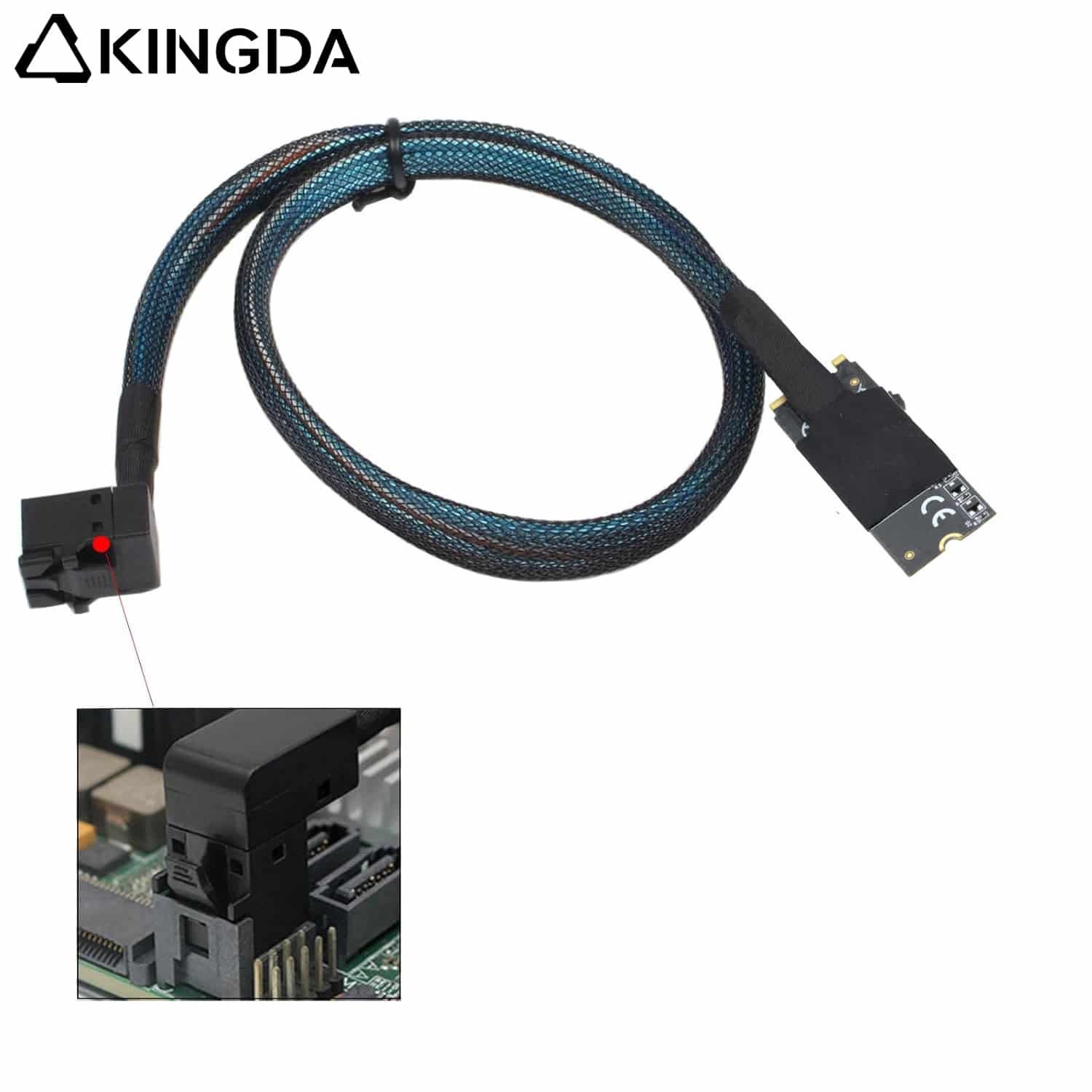

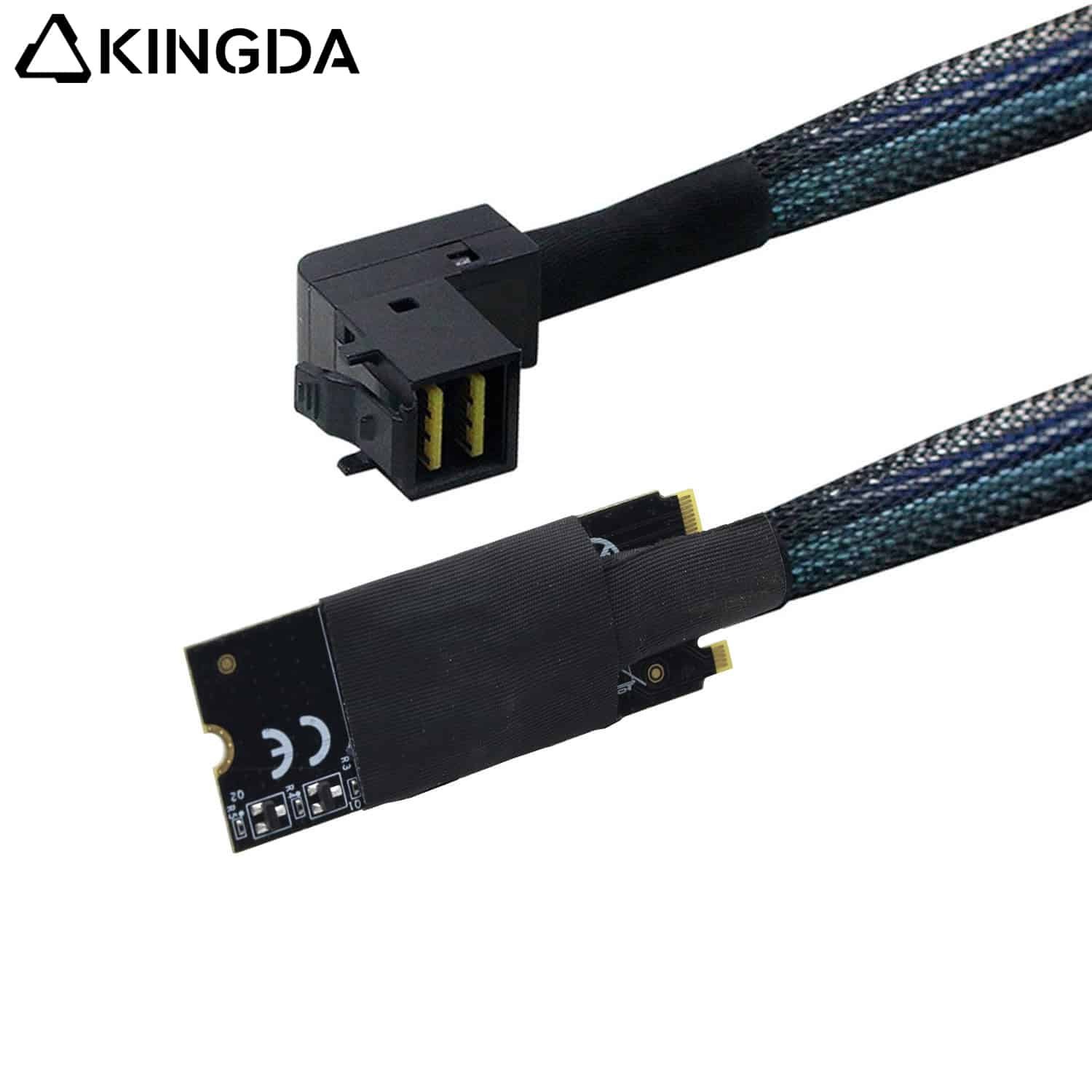

M.2(M-Key NVMe 2260) SFF 8643 TO SAS right angle 90 degree SFF-88643 High Speed Server Internal Connection cable
M.2(M-Key NVMe 2260) SFF 8643 TO SAS right angle 90 degree SFF-88643 High Speed Server Internal Connection cable - Image 2
M.2(M-Key NVMe 2260) SFF 8643 TO SAS right angle 90 degree SFF-88643 High Speed Server Internal Connection cable - Image 3
M.2(M-Key NVMe 2260) SFF 8643 TO SAS right angle 90 degree SFF-88643 High Speed Server Internal Connection cable - Image 4
M.2(M-Key NVMe 2260) SFF 8643 TO SAS right angle 90 degree SFF-88643 High Speed Server Internal Connection cable - Image 5
M.2(M-Key NVMe 2260) SFF 8643 TO SAS right angle 90 degree SFF-88643 High Speed Server Internal Connection cable - Image 6

M.2(M-Key NVMe 2260) SFF 8643 TO SAS right angle 90 degree SFF-88643 High Speed Server Internal Connection cable

  • M.2(M-Key) SFF 8643 TO right angle 90 degree SFF 8643
  • Gold plated connectors
  • Conductor: TC/BC (bare copper),
  • Gauge: 28/30AWG
  • Jacket: Nylon or Tube
  • Length: 0.5m/ 1m or others. (optional)
  • All materials with RoHS complaint

Compare
Add to wishlist

Free delivery for orders over $100

M.2(M-Key) SFF 8643 TO right angle 90 degree SFF 8643

Gold Plated

Color Black

Electrical
Quality Control systemOperation according to regulation & rules in ISO9001
VoltageDC300V
Insulation Resistance10M min
Contact Resistance3 ohm max
Working Temperature-25C—80C
Data transfer rate12G

Applications:

The Mini SAS cables are widely used in HD, Computer, Server.

Detail

Definition: M.2 is a physical interface standard used to connect devices such as solid-state drives (SSDs), Wi-Fi/Bluetooth modules, etc.

Former name: Initially known as NGFF (Next Generation Form Factor), later renamed M.2, but the two are essentially the same.

Size specification:

Format: Width Ă— Length. For example, 2280 indicates a width of 22mm and a length of 80mm. Common sizes include 2230, 2242, 2260, and 2280.

Channel support:

The M.2 interface is compatible with either SATA or PCIe bus, depending on the design of the motherboard.

Utral durability and shielding performance

The outside is wrapped with high-quality insulating material to protect the internal wires from the external environment, such as to prevent wear and tear, moisture, etc.. Some high-quality products may also come with a shielding layer, such as metal woven mesh shielding or aluminium foil shielding, which can reduce the impact of external electromagnetic interference on data transmission and improve the purity and stability of the signal.
