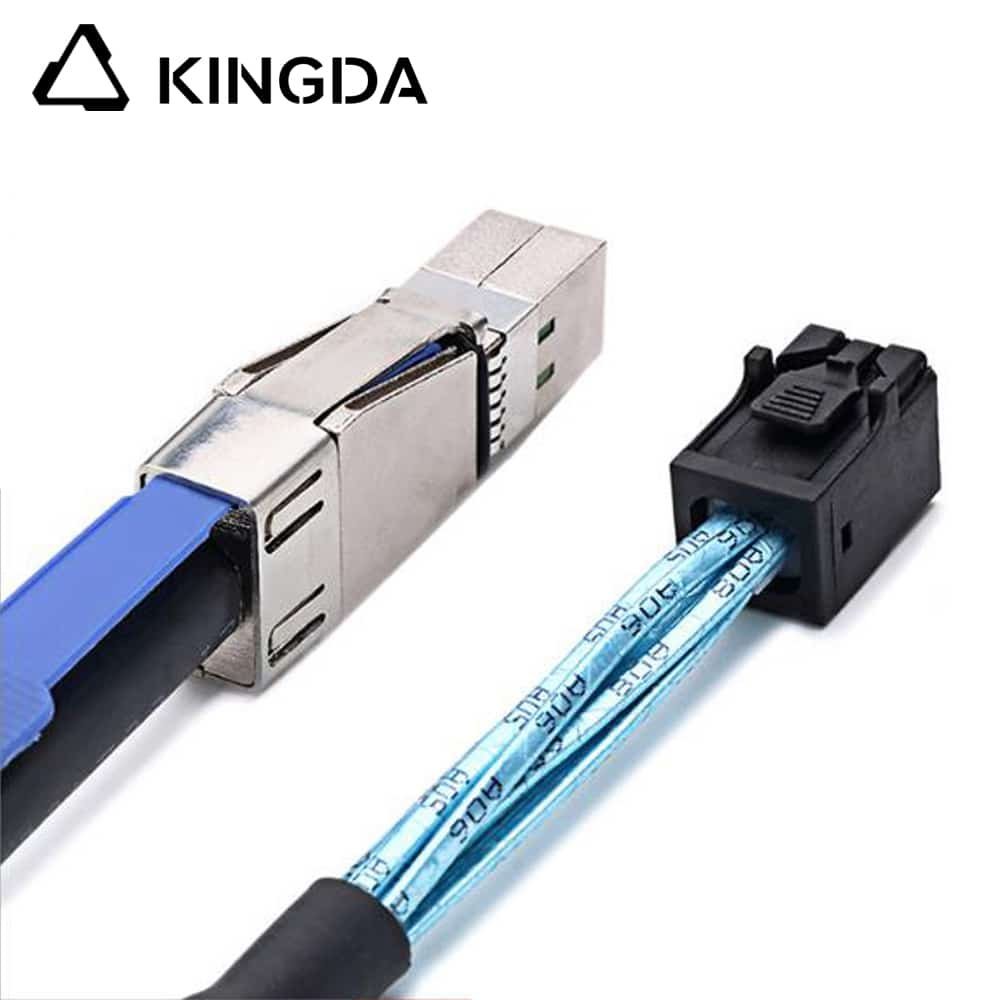

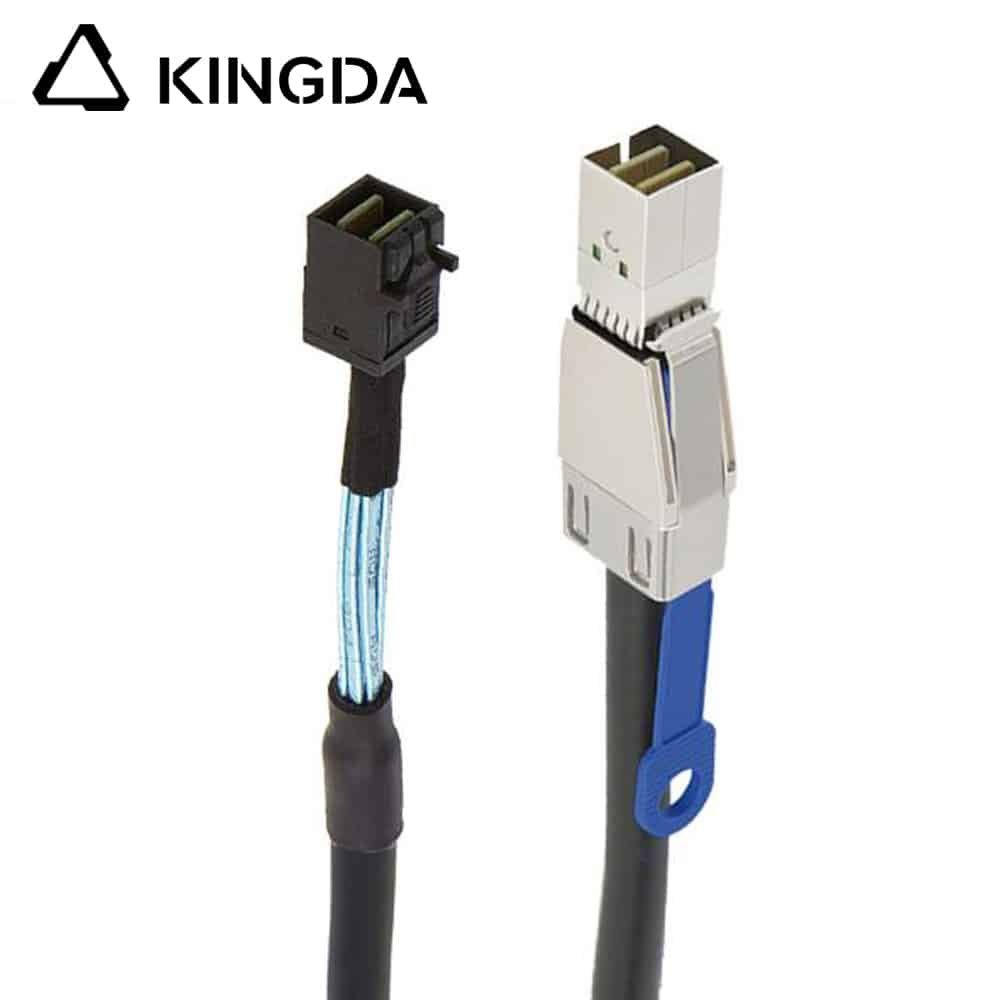

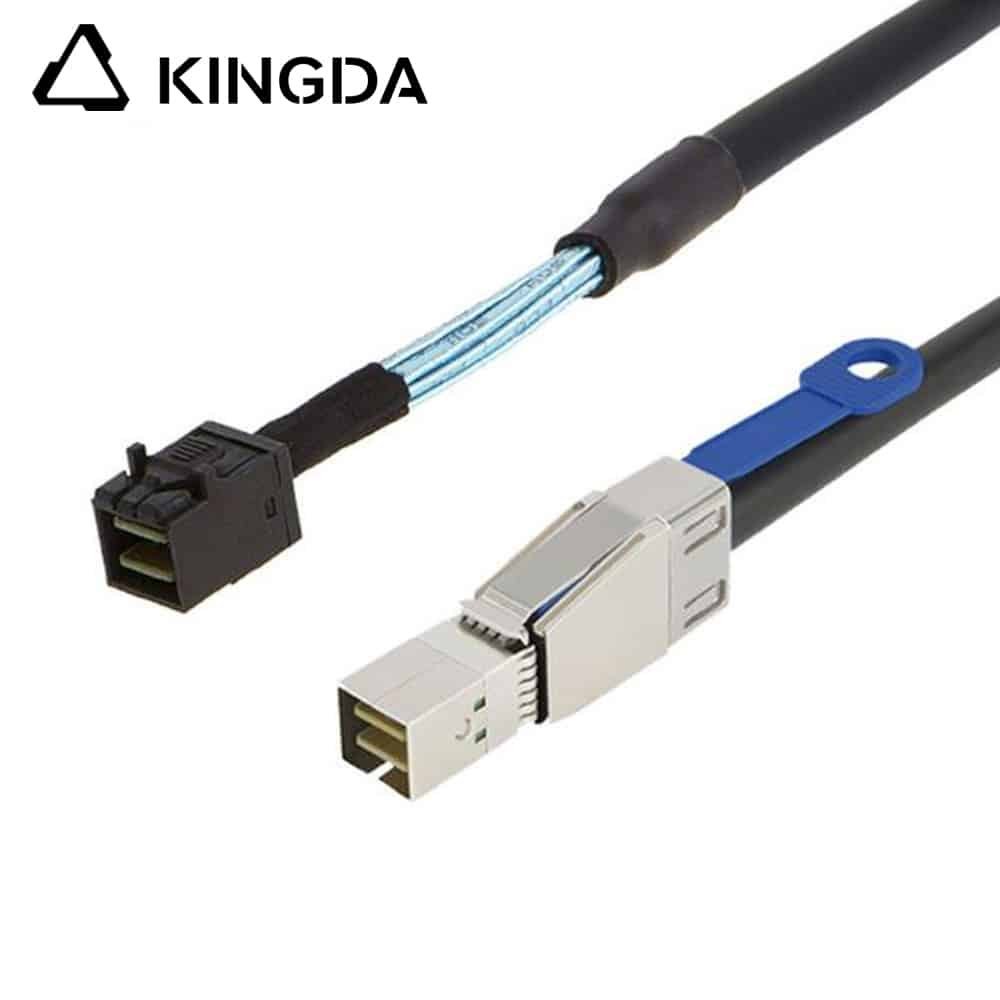

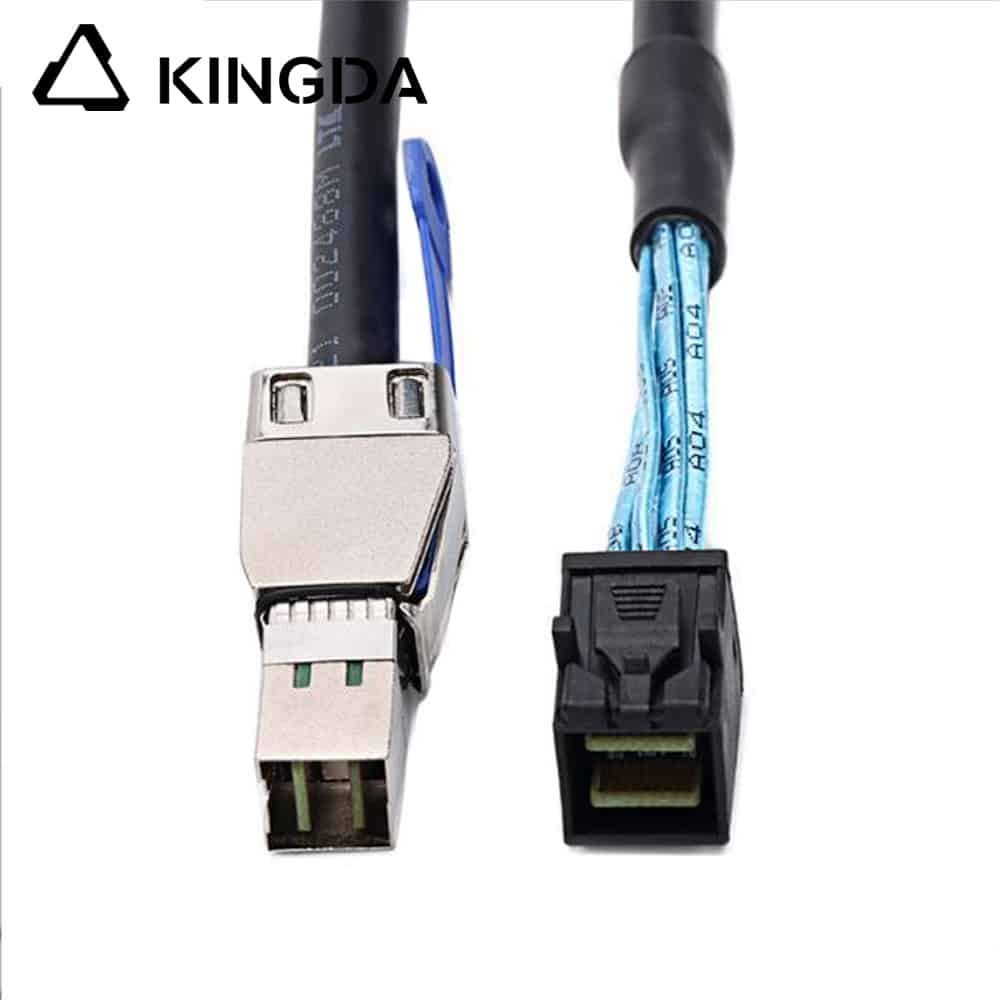

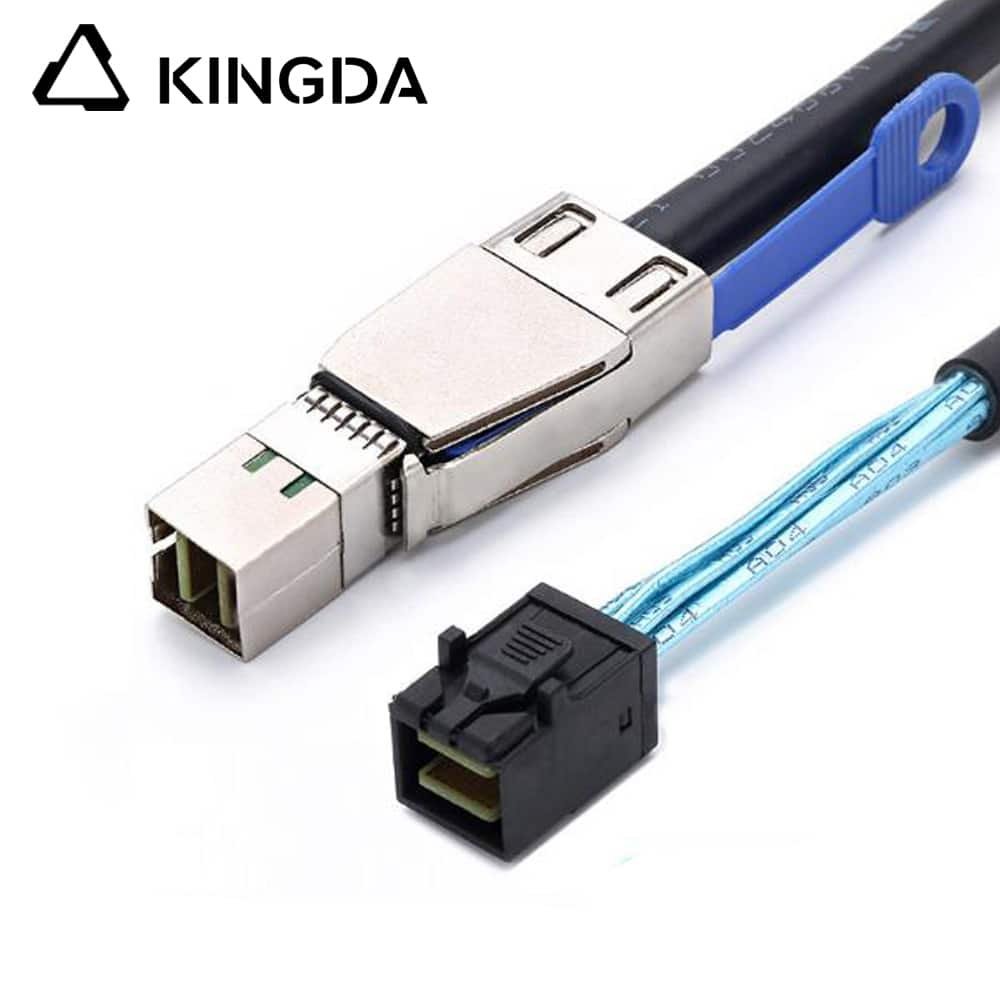

PCIE MINI SAS SFF-8644 36P to SFF 8643 4i server Connection Cable

MINI SAS SFF 8644 to SFF 8643

Gold Plated

Color Black

Applications:

SFF 8644 cables are widely used in High-performance computing equipment，such as Computer, Server…etc

Interface

The SFF-8644 is a 36-pin “High-Density SAS” connector with a metal shell compatible with shielded external connections. Its typical application is the SAS link between SAS HBA and SAS drive subsystems. The SFF-8644 complies with the latest SAS 3.0 specification and supports a 12Gb/s data transfer protocol. The corresponding internal product of the SFF-8644 HD MiniSAS is the SFF-8643, which is also compatible with SAS 3.0 and supports a 12Gb/s SAS data transfer speed.

Detail

The internal wires are usually made of high-quality copper, which has good electrical and thermal conductivity to ensure stable and efficient data transmission. The exterior is wrapped with an insulating material, usually HDPE or other materials with good insulating properties, which protects the internal wires from the external environment and also prevents short circuits and other problems between the cables.

Utral durability and shielding performance

The connector Lock and contact part will usually use metal materials, such as brass, phosphor bronze and so on. These contact have good electrical conductivity and mechanical strength, to ensure a stable connection between the connector and the equipment, and can withstand multiple insertion and extraction and not easy to damage. The Lock can fit tightly with the device. improve the stability of signal transmission.
