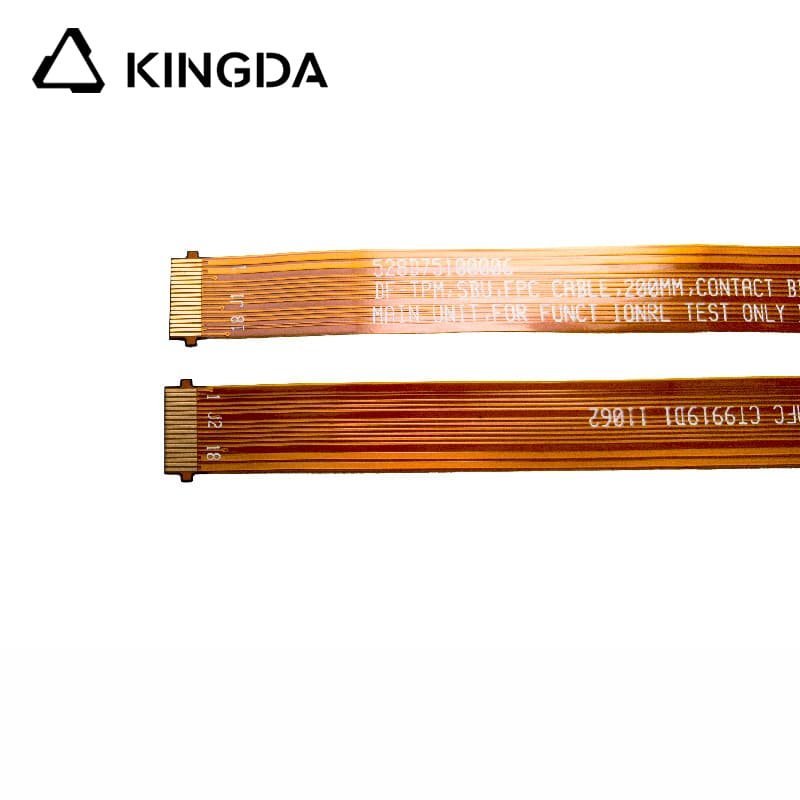

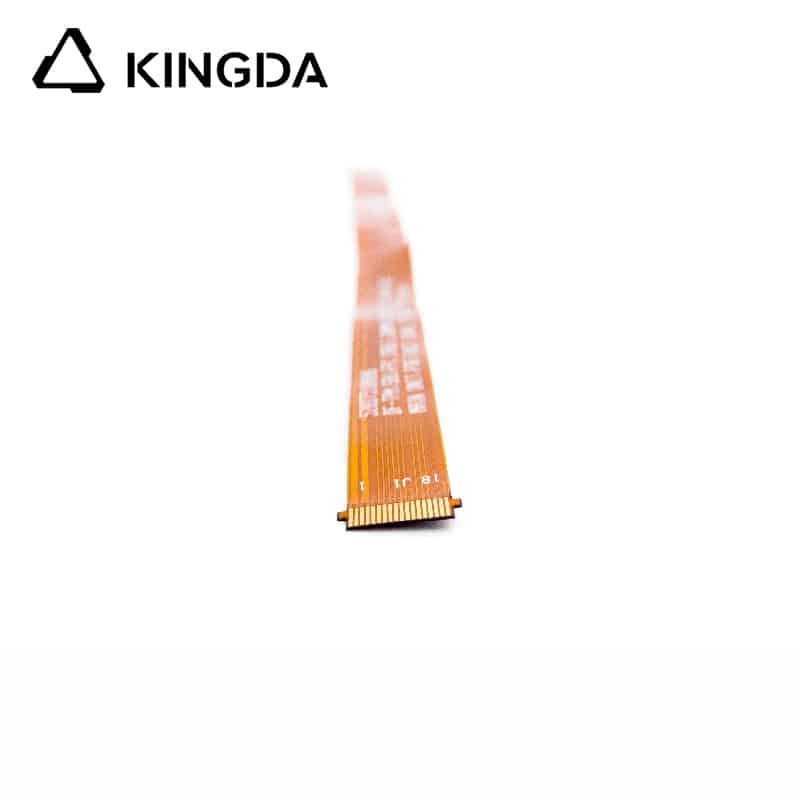

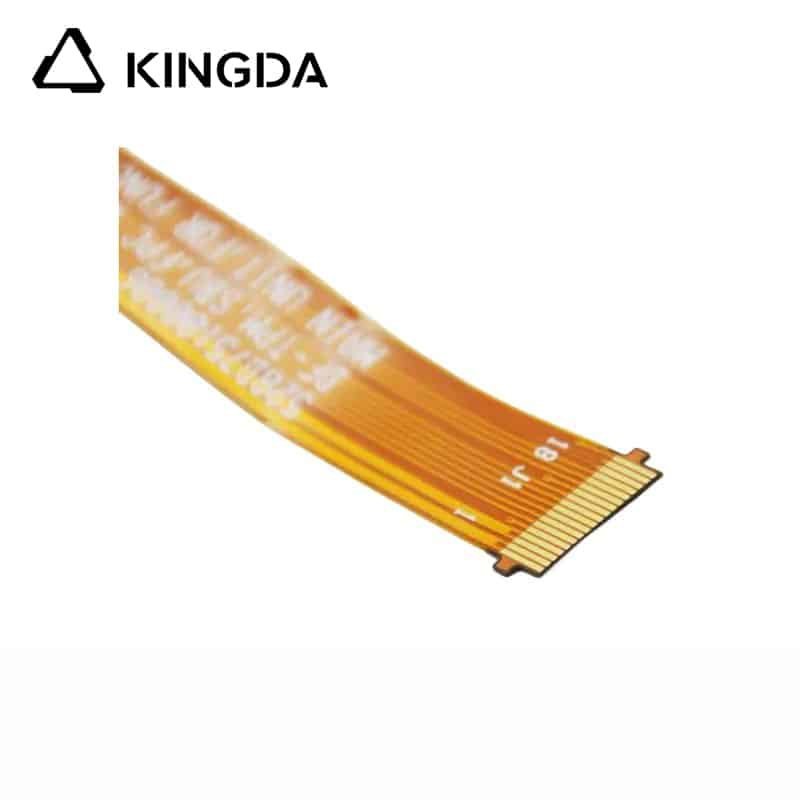

Smart OEM ODM Fast produce custom design 0.5mm pitch 6 to 50 pin flex flat fpc cable with stiffener
Smart OEM ODM Fast produce custom design 0.5mm pitch 6 to 50 pin flex flat fpc cable with stiffener - Image 2
Smart OEM ODM Fast produce custom design 0.5mm pitch 6 to 50 pin flex flat fpc cable with stiffener - Image 3
Smart OEM ODM Fast produce custom design 0.5mm pitch 6 to 50 pin flex flat fpc cable with stiffener - Image 4
Smart OEM ODM Fast produce custom design 0.5mm pitch 6 to 50 pin flex flat fpc cable with stiffener - Image 5
Smart OEM ODM Fast produce custom design 0.5mm pitch 6 to 50 pin flex flat fpc cable with stiffener - Image 6

Smart OEM ODM Fast produce custom design 0.5mm pitch 6 to 50 pin flex flat fpc cable with stiffener

Compare
Add to wishlist

Free delivery for orders over $100

Single layer, multi-layer, hollow FPC, separated-layer FPC,

ItemFPC Capability
Product typesSingle layer, double layer,multi-layer, hollow FPC, separated-layer FPC, flex-rigid
Layer1-14 layer flex pcb, 2-14 layer flex-rigid pcb
Maximum finished board size250*5000mm
Board thicknessFPC,0.06-0.4mm; Flex-rigid PCB, 0.25-6.0mm
Min. trace width & spacing0.045/0.045MM
Base materialPI, PET, Electrolytic Copper, Rolled Copper
Tolerance for finished product±0.03mm
Copper thickness12UM, 18UM, 36UM, 70UM
PTH Hole Dia.Tolerance(plated-through-hole)±0.05mm
StiffenerFR4/PI/PET/SUS/PSA
Impedance Control of Finished Product50Ω – 120Ω
Acceptance criteriaFactory production standard, GBï¼›IPC-650, IPC-6012, IPC-6013 II, IPC-6013 III, etc

Applications:



The FPC cable widely used in COMPUTER, Consumer Electronics



Interface:

  • FPC cable used for signal transimission and iternal layout in fields of diplay, flat television set, printer, scanner, computer digital camera, video camera, fax machine and copier, Agilent tester etc



· SUPPER FLEXIBLE & SOFT:

The cable is made of special materials and professional manufacturing process. Wire is very soft and flexible so that can be easily rolled up and unrolled.
