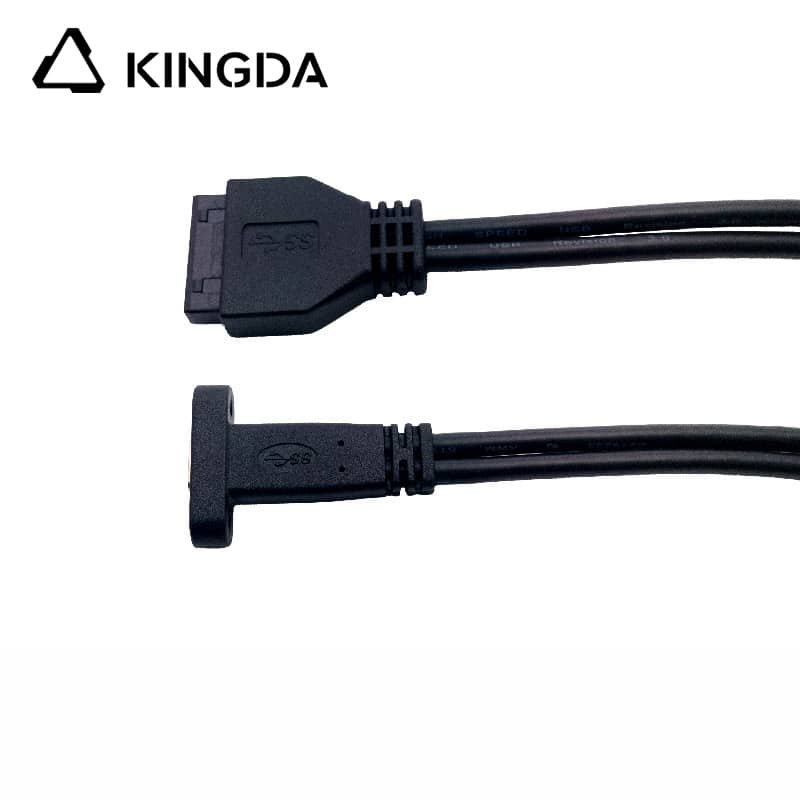

USB3.1 type-C Female to usb3.0 20pin Data Cable header extension Cable with PCI Baffle for PC Motherboard
- USB3.1 Gen1 – transfer data at speeds of up to 5 Gbps
- Support reversible plug orientation
- USB 3.1 FemaleWithpanel or not
- 3A Fast Charging, Charging+Transmission
- All materials with ROHS complaint
Free delivery for orders over $100

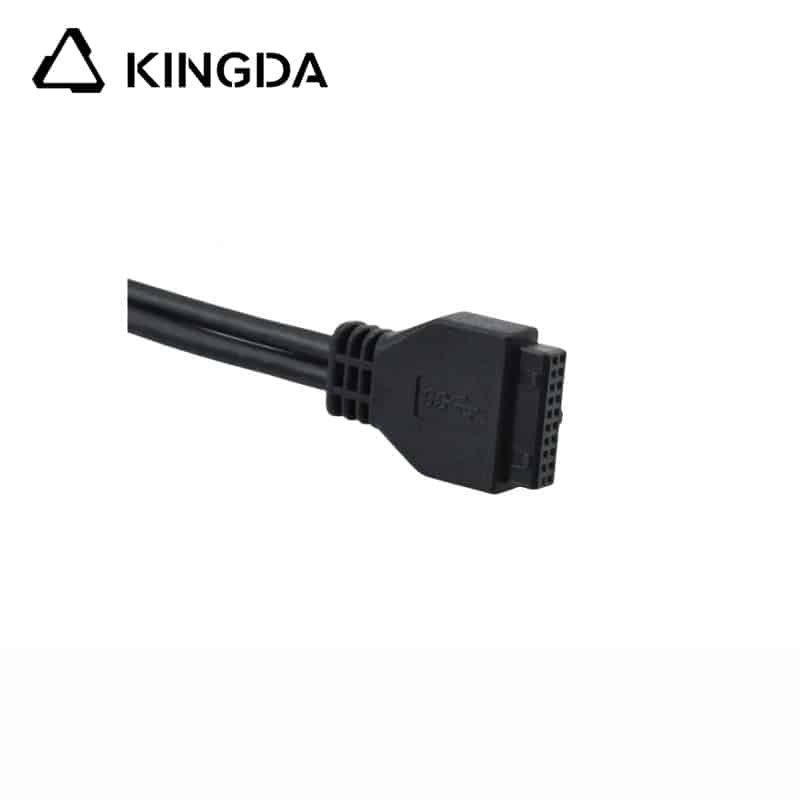

USB 3.0 Motherboard 20 Pin Header to USB Type C Panel Cable
| Electrical | |
| Quality Control system | Operation according to regulation & rules in ISO9001 |
| Voltage | DC300V |
| Insulation Resistance | 2M min |
| Contact Resistance | 5 ohm max |
| Working Temperature | -25C—80C |
| Data transfer rate | 5Gbps |
Applications:
The Ultra Supper High speed USB C cable widely used in
COMPUTER, Motherboard
Interface
Compliant with USB Power Delivery 2.0, providing up to 100 W
Double the bandwidth of USB 3.0, increasing to 10 Gbps with SuperSpeed+ USB3.1
Combines multiple protocols in a single cable, including DisplayPort™, PCIe® or Thunderbolt™
【Data rate】
Support USB 3.0 5Gbps Max..
Detail
The wire meets the standard of USB 3.0 Association. The 9-core tinned copper conductor and multi-layer signal shielding make the data transmission more stable and efficient. The plug is made of high-quality metal. The nickel plating process improves the oxidation resistance. The gold plating of phosphor copper shrapnel makes the plugging life longer and the contact impedance smaller.
Utral durability and shielding performance
The outside is wrapped with high-quality insulating material to protect the internal wires from the external environment, such as to prevent wear and tear, moisture, etc.. Some high-quality products may also come with a shielding layer, such as metal woven mesh shielding or aluminium foil shielding, which can reduce the impact of external electromagnetic interference on data transmission and improve the purity and stability of the signal.
