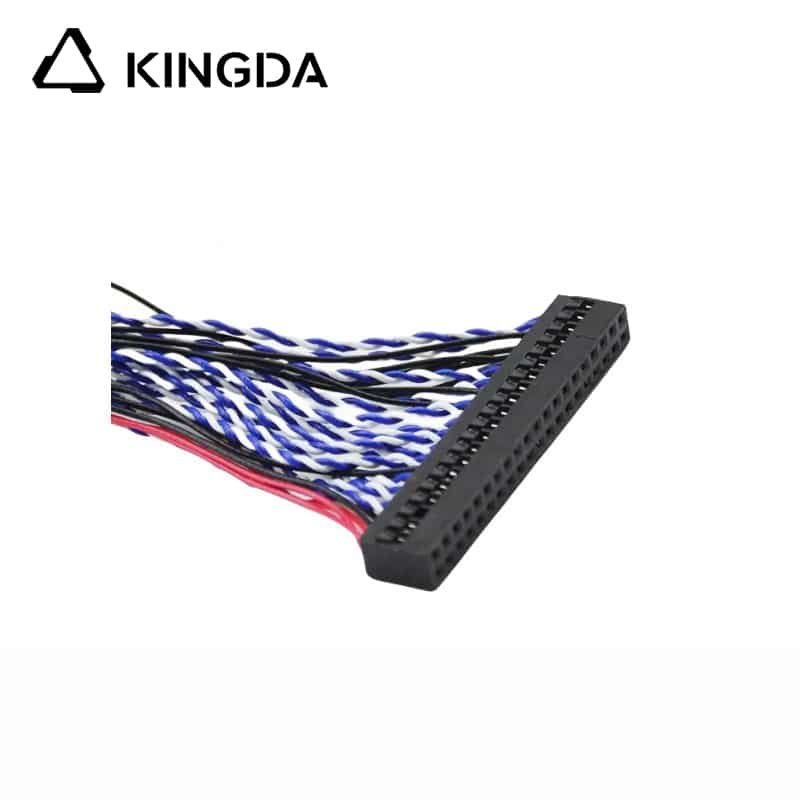

Double row LVDS 2*20pin to 2*20pin DuPont EDP converter assembles 40PIN 2.0Pitch LCD TV display LVDS cable - Image 1

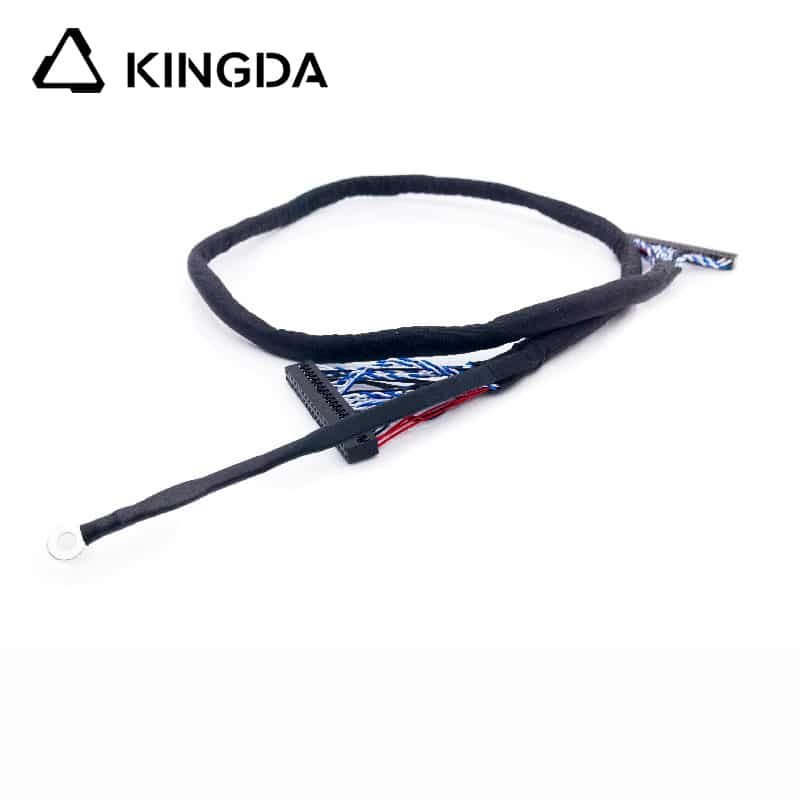

Double row LVDS 2*20pin to 2*20pin DuPont EDP converter assembles 40PIN 2.0Pitch LCD TV display LVDS cable - Image 2

Double row LVDS 2*20pin to 2*20pin DuPont EDP converter assembles 40PIN 2.0Pitch LCD TV display LVDS cable

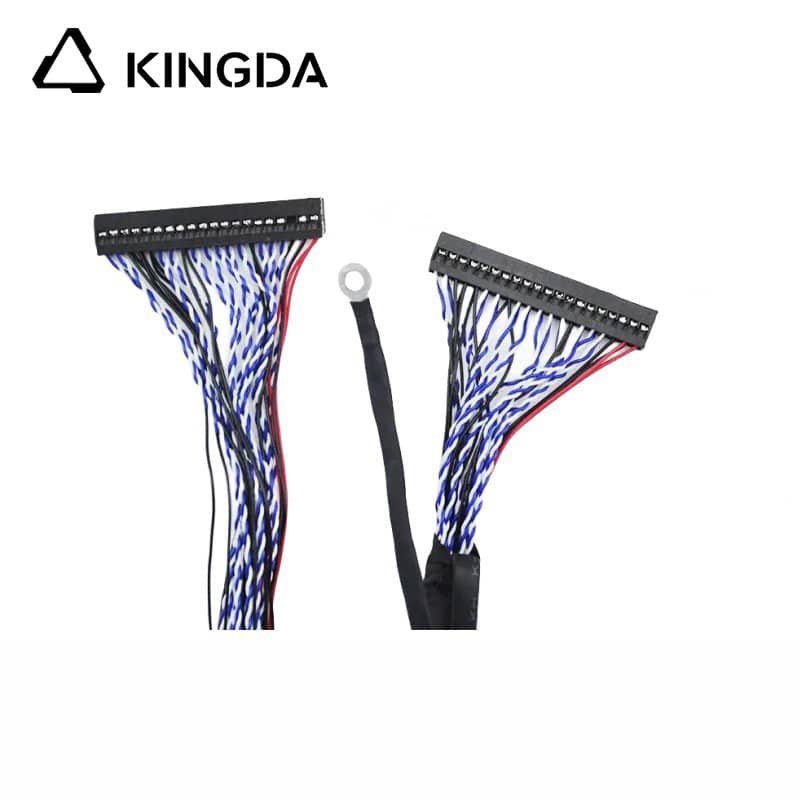

Double row LVDS 2*20pin to 2*20pin DuPont EDP converter assembles 40PIN 2.0Pitch LCD TV display LVDS cable - Image 3

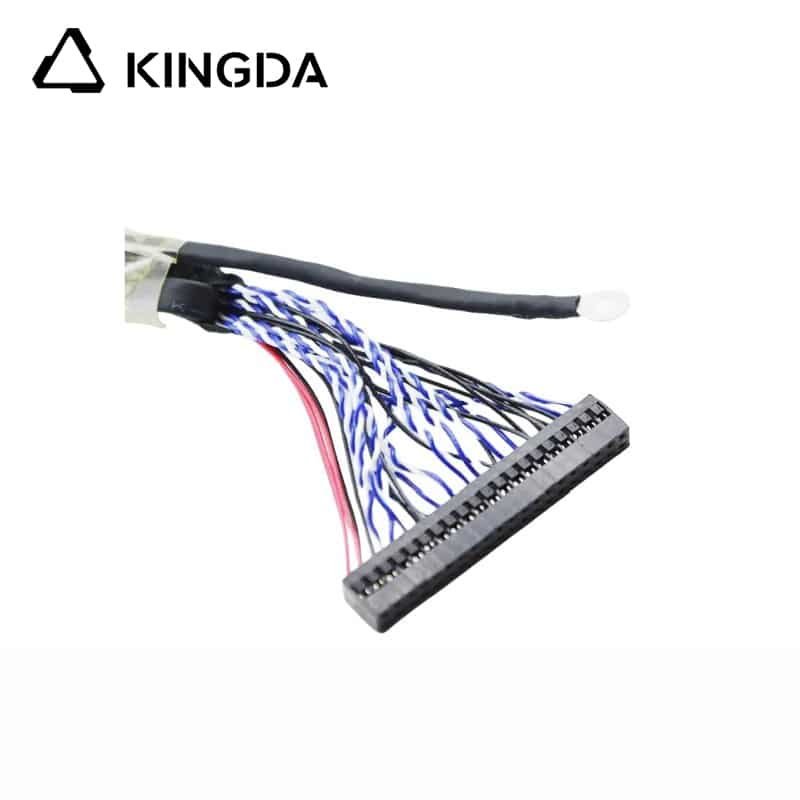

Double row LVDS 2*20pin to 2*20pin DuPont EDP converter assembles 40PIN 2.0Pitch LCD TV display LVDS cable - Image 4

Double row LVDS 220pin to 220pin DuPont EDP converter assembles 40PIN 2.0Pitch LCD TV display LVDS cable

LVDS 2*20pin to 2*20pinLvds cable
Sn or Gold plated connectors
Conductor: BC (bare copper),
Gauge: 36AWG
Jacket: pvc jacket with Graphene technology shielding
Length: 0.5/ 1m or others. (optional)
All materials with RoHS complaint

Compare

Add to wishlist

Double row 2.0pitch 40PIN Female TO 40PIN Female LVDS cable

Sn or Gold Plated

Color Black or White

Electrical
Quality Control system	Operation according to regulation & rules in ISO9001
Voltage	DC300V
Insulation Resistance	10M min
Contact Resistance	3 ohm max
Working Temperature	-25C—80C
Data transfer rate

Applications:

The LVDS cable widely used in COMPUTER,

Interface:

LVDS cable used for signal transimission and iternal layout in fields of diplay, flat television set, printer, scanner, computer digital camera, video camera, fax machine and copier, Agilent tester etc

SUPPER FLEXIBLE& SOFT:

The cable is made of special materials and professional manufacturing process.Wire is very soft and flexible so that can be easily rolled up and unrolled.

Ultra high bending resistance and high durability:

36AWG pure copper conductor, gold plated connector corrosion resistance, high durability; Solid copper conductor and graphene technology shielding support ultra high flexibility and ultra high shielding
