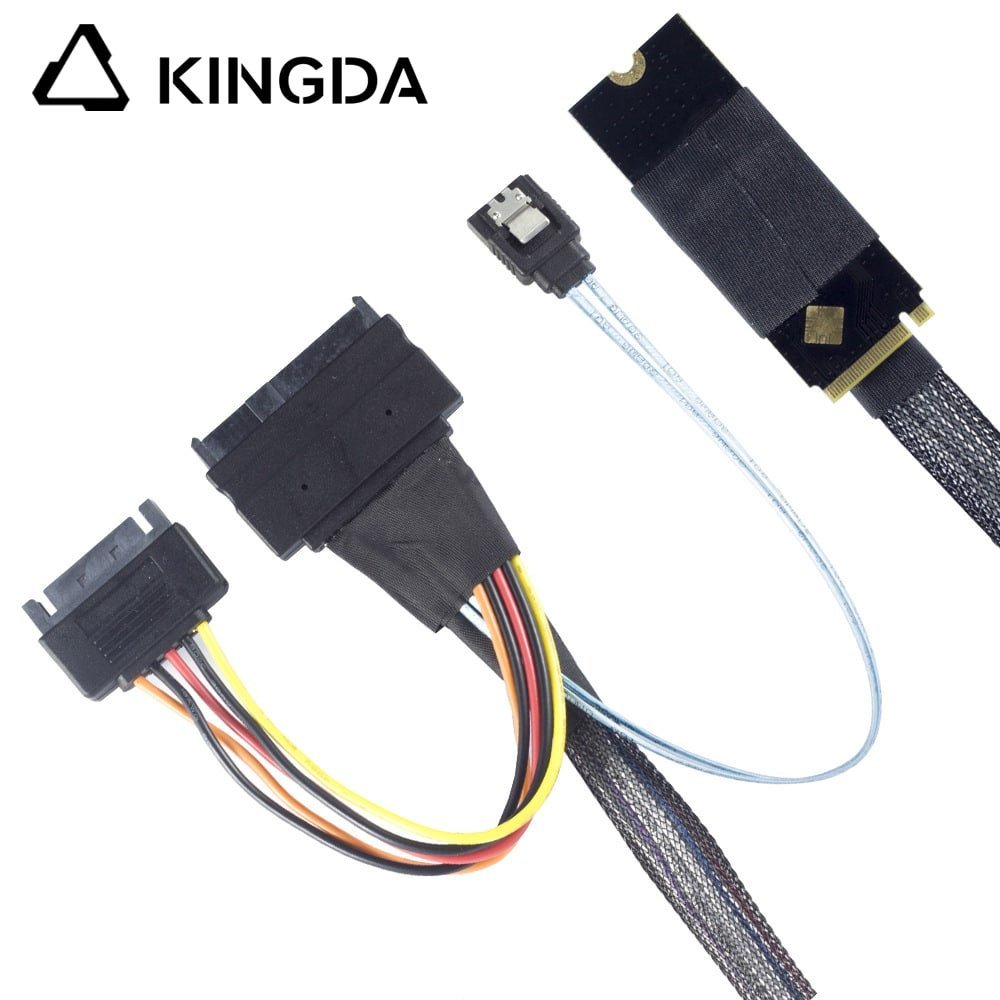

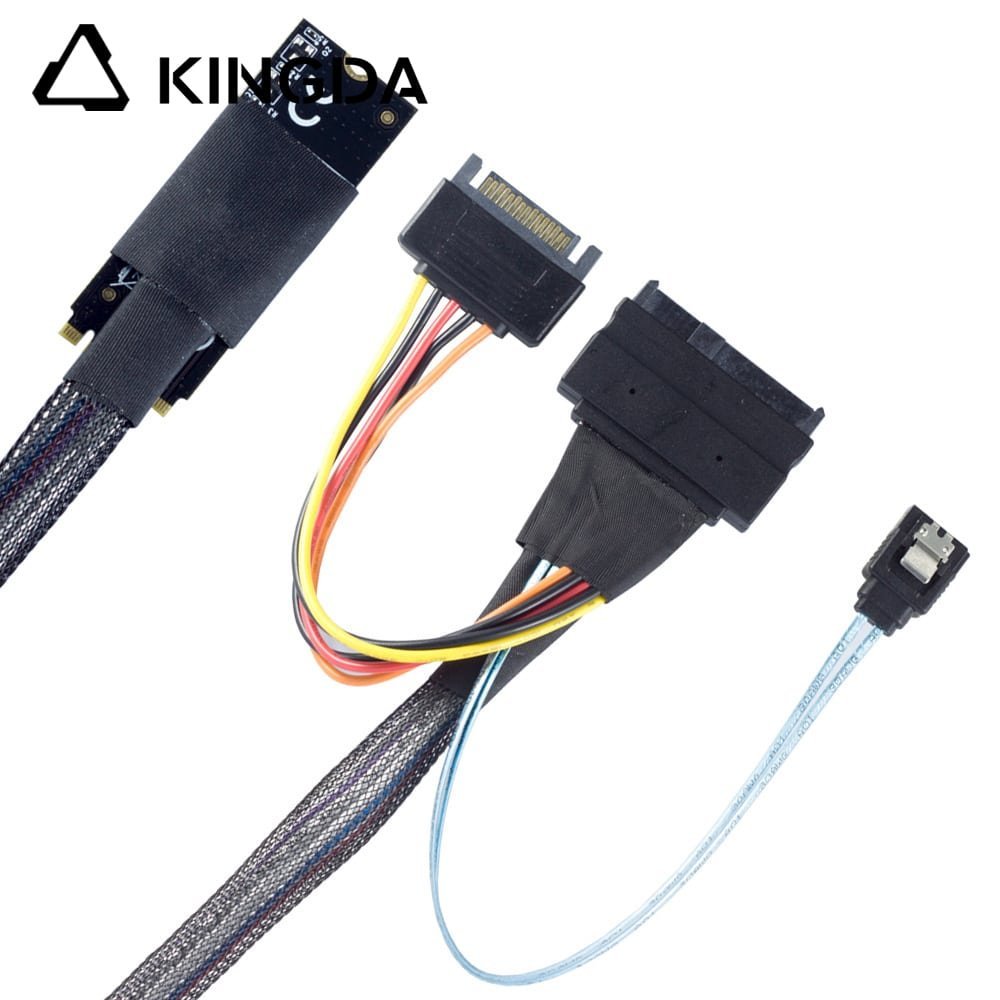

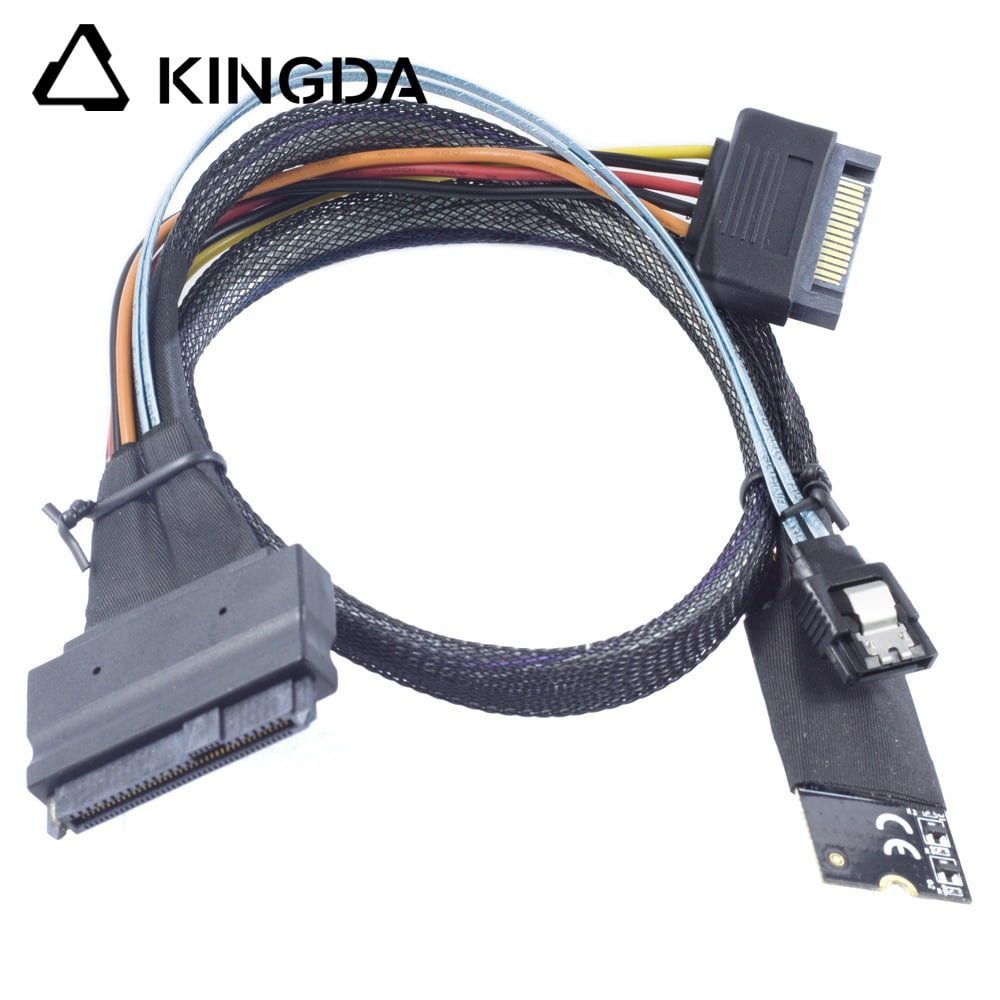

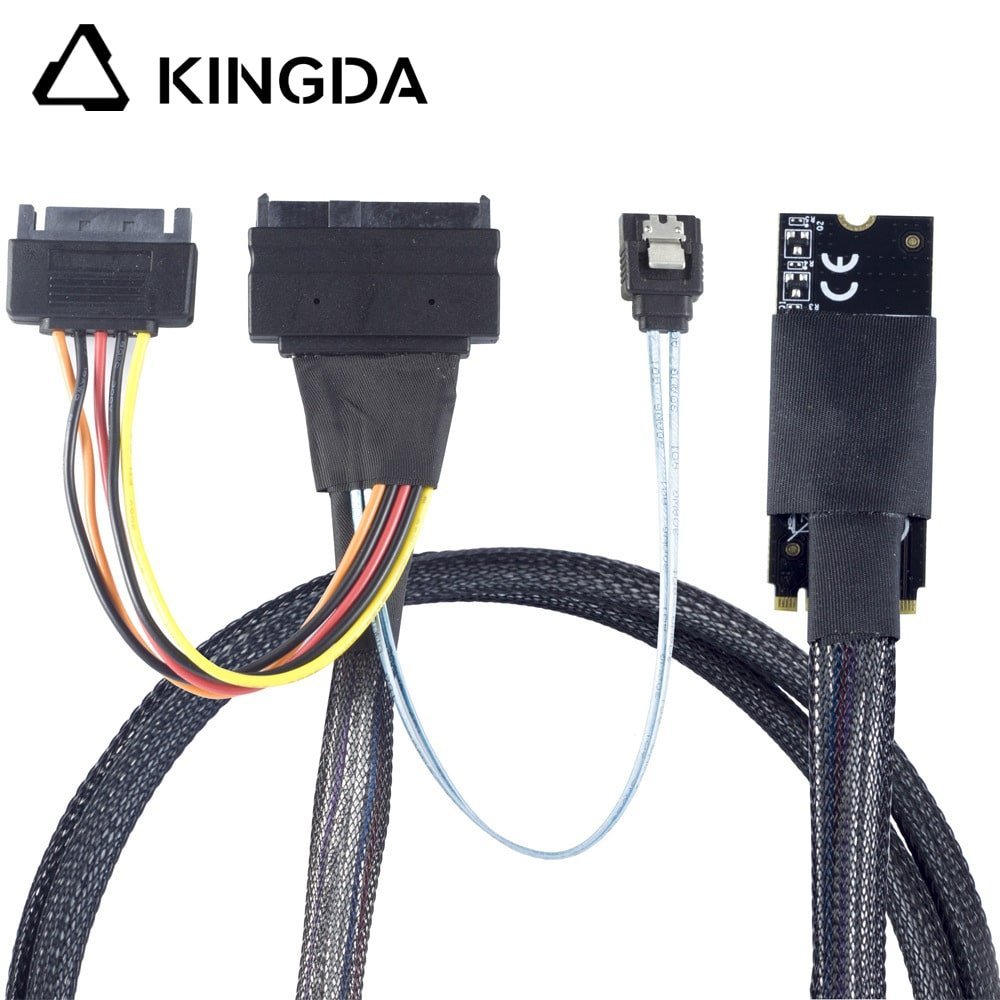

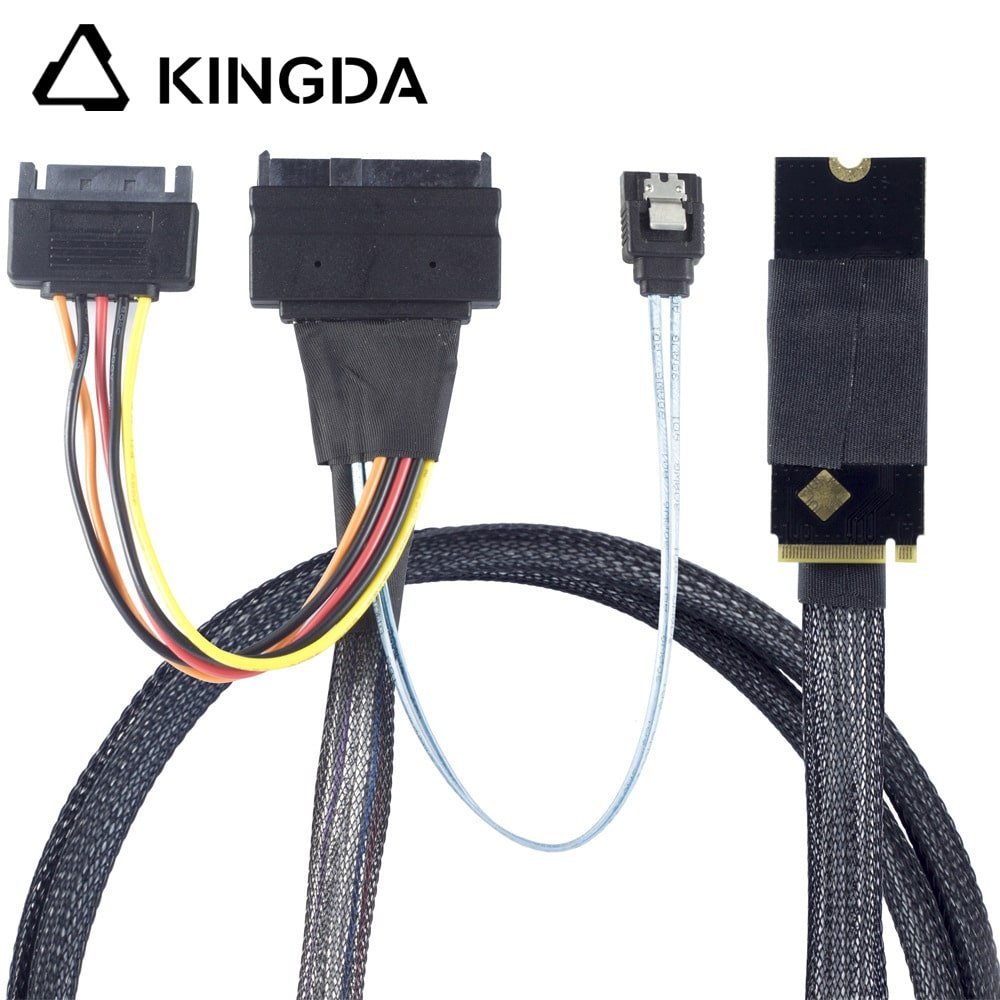

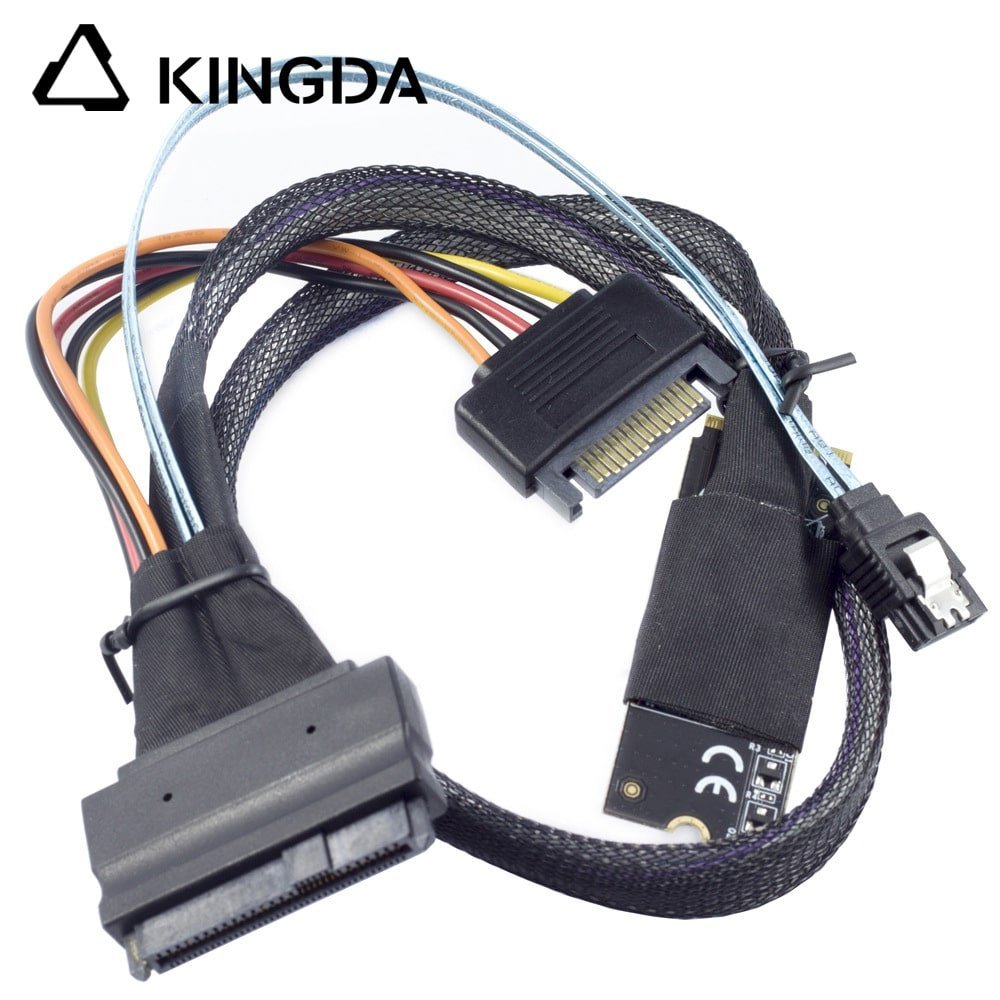

M.2 M-Key SFF-8643 to U.2 SFF-8639 with SATA 15P and straight SATA 7p Connection Cable
- M.2(M-Key) SFF 8643 TO U.2 SFF-8639 with SATA 15P and straight SATA 7p Cable
- Gold plated connectors
- Conductor: TC/BC (bare copper),
- Gauge: 28/30AWG
- Jacket: Nylon or Tube
- Length: 0.5m/ 1m or others. (optional)
- All materials with RoHS complaint
Free delivery for orders over $100
M.2(M-Key) SFF 8643 TO U.2 SFF-8639 with SATA 15P and straight SATA 7p Cable
Gold Plated
Color Black
| Electrical | |
| Quality Control system | Operation according to regulation & rules in ISO9001 |
| Voltage | DC300V |
| Insulation Resistance | 10M min |
| Contact Resistance | 3 ohm max |
| Working Temperature | -25C—80C |
| Data transfer rate | 12G |
Applications:
The Mini SAS cables are widely used in HD, Computer, Server.
Detail
Definition: M.2 is a physical interface standard used to connect devices such as solid-state drives (SSDs), Wi-Fi/Bluetooth modules, etc.
Former name: Initially known as NGFF (Next Generation Form Factor), later renamed M.2, but the two are essentially the same.
Size specification:
Format: Width × Length. For example, 2280 indicates a width of 22mm and a length of 80mm. Common sizes include 2230, 2242, 2260, and 2280.
Channel support:
The M.2 interface is compatible with either SATA or PCIe bus, depending on the design of the motherboard.
Utral durability and shielding performance
The outside is wrapped with high-quality insulating material to protect the internal wires from the external environment, such as to prevent wear and tear, moisture, etc.. Some high-quality products may also come with a shielding layer, such as metal woven mesh shielding or aluminium foil shielding, which can reduce the impact of external electromagnetic interference on data transmission and improve the purity and stability of the signal.
